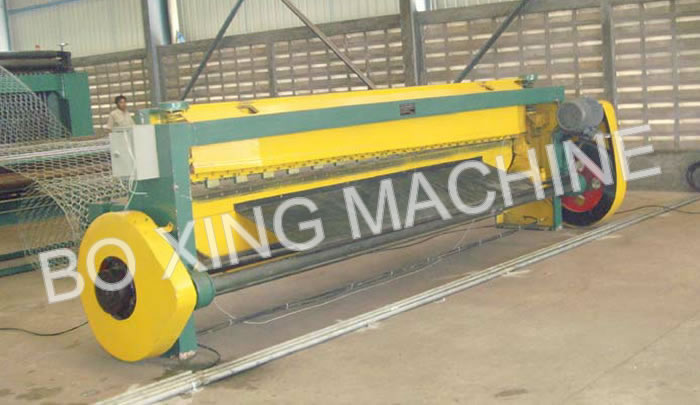

Gsbion Mesh Shearing Machine(Netting Sheet S Cutting Machine)

Gabion mesh shearing machine, also named gabion mesh cutting machine, is normally used to cu off the gabion mesh to reinforce the border.

Model		BX-JW-4*2500	BX-JW-3*4100
Wire diameter		4mm	4mm
Mesh shearing width		2500mm	4100mm
Shearing strength		450N/mm2	450N/mm2
Shearing angle		1°30'	1°30'
Max. distance of backaguage		550mm
Stroke number per minute		22	20
Blade length		2600mm	4400mm
Height of working table above the floor		800mm	800mm
Main motor	Model	Y132S-4	Y132S-4
Main motor	Power	5.5KW	5.5KW
	Revolution	1500r/min	1500r/min
Motor for backgauge	Model	Y80-6	Y80-6
	Power	0.55KW	0.55KW
	Revolution	910r/min	910r/min
Oil pump	Model	PLV-14	PLV-14
	Flow	14 ml/r	14 ml/r
	Pressure	21MPa	21MPa
Overall size	Length	3240mm	5040mm
	Width	1300mm	1300mm

	Height	1435mm	1435mm
Machine weight		3200Kg	4680Kg
Contents of oil tank		90L	90L
