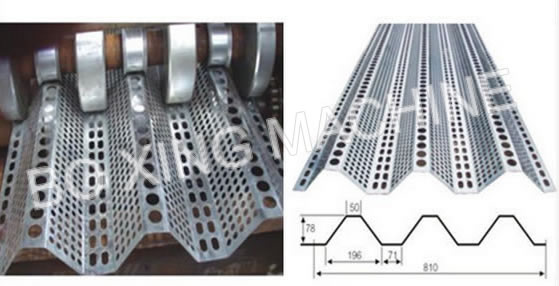

Wind-proof and dust- free roll forming machine

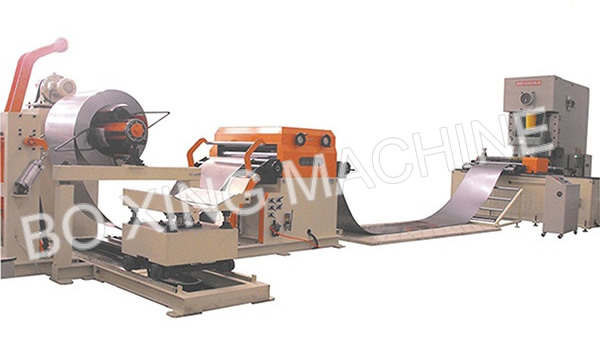

Automatic Wind-proof and dust- free roll forming production linee
Dust Suppression and Wind Proofing Wall making machine
Specifiaction:
| No. | main parameter of roll forming machine | |
| 1 | Suitable to process: | Color steel plate |
| 2 | Width of the plate: | 1000mm |
| 3 | Pass: | 15passes |
| 4 | Frame: | 350mm H steel |
| 5 | Middle plate: | 16mm |
| 6 | Roller material: | 45# steel |
| 7 | Diameter of the roller: | 90mm |
| 8 | Chain\Chain wheel: | 1.2inch |
| 9 | Power: | 7.5kw |
| 10 | Thickness of the plate: | 0.2-0.8mm |
| 11 | Productivity: | 0-3m/min |
| 12 | Dimension: | 6*1.3*1.2 |
| 13 | Total weight: | 4T |
| 14 | Control system: | PLC control |
| 15 | Used | wall panel |
